Dimensions
OVERALL LENGTH：44.27 M (145 FT. 3 IN.)
WATERLINE LENGTH：42.98 M (141 FT.)
MAX BEAM：8.90 M (29 FT. 2 IN.)
DRAFT：2.45 M (8 FT.)
DISPLACEMENT：APPROX. 472 T
GROSS TONNAGE：497 GT
Performance & Capacities
CRUISING/MAX SPEED：11/13 KNOTS
RANGE：4000 NM @ 10 KNOTS

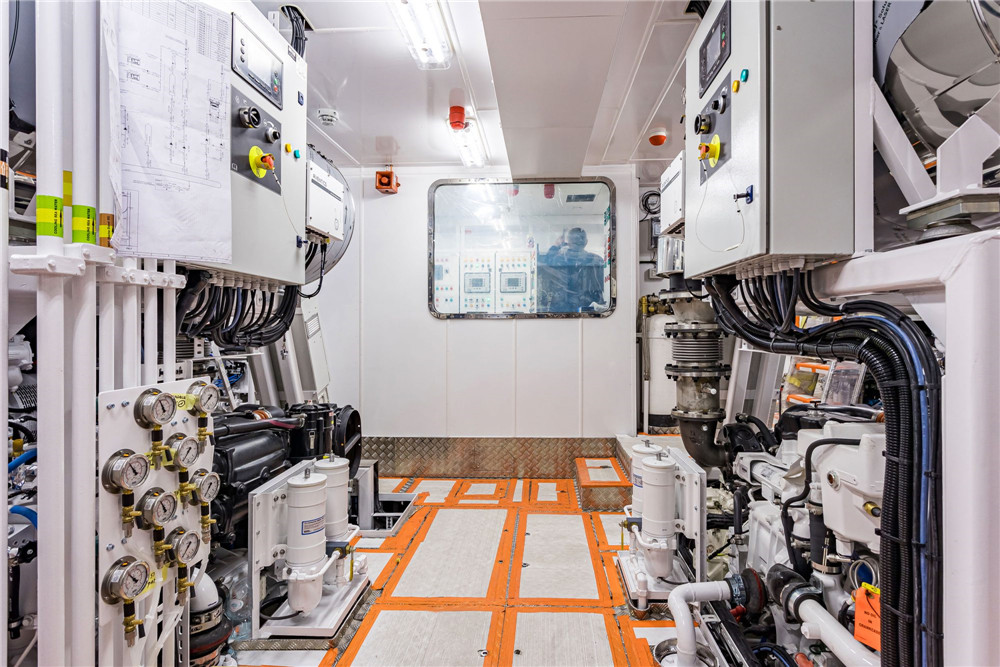

ENGINE：2X CAT C18 ACERT, B-RATED, 500KW @ 2100RPM
GEARBOX：2X ZF W650
PROPULSION：2X RUBBER DESIGN OIL-COOLED SHAFT LINES
GENERATOR：2X CAT C7.1 118 KW

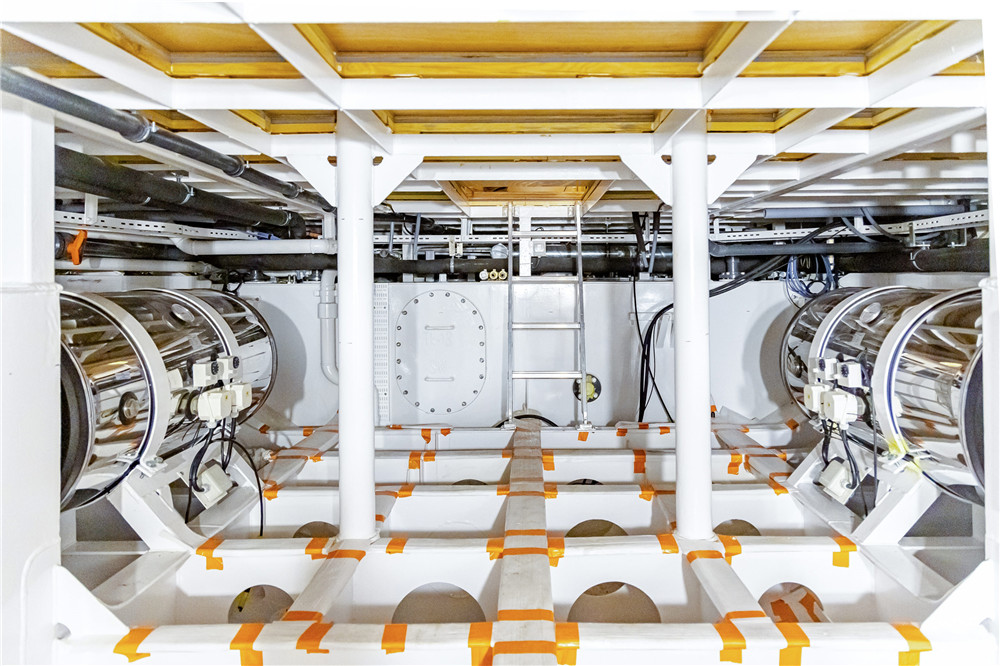

STABILIZATION SYSTEM：CMC ELECTRIC ZERO SPEED STABILIZERS
BOW THRUSTER：CMC DUALIS ELECTRA 90 KW
Other description
1.Each vessels can highly customized to the owners taste and practical usage.
2.Our Products are 100% for export, with Europe and U.S. as the main export zone. We only use high-quality materials and high-end manufacturing technology.
3.All the Products obtained the approval of Professional Certification Authority.
